Potentiostat and galvanostat with the highest combined built-in specifications

VIONIC powered by INTELLO


New: Most advanced potentiostat/galvanostat

All-in-one, one-for-all instrument
Item number: 3500001080

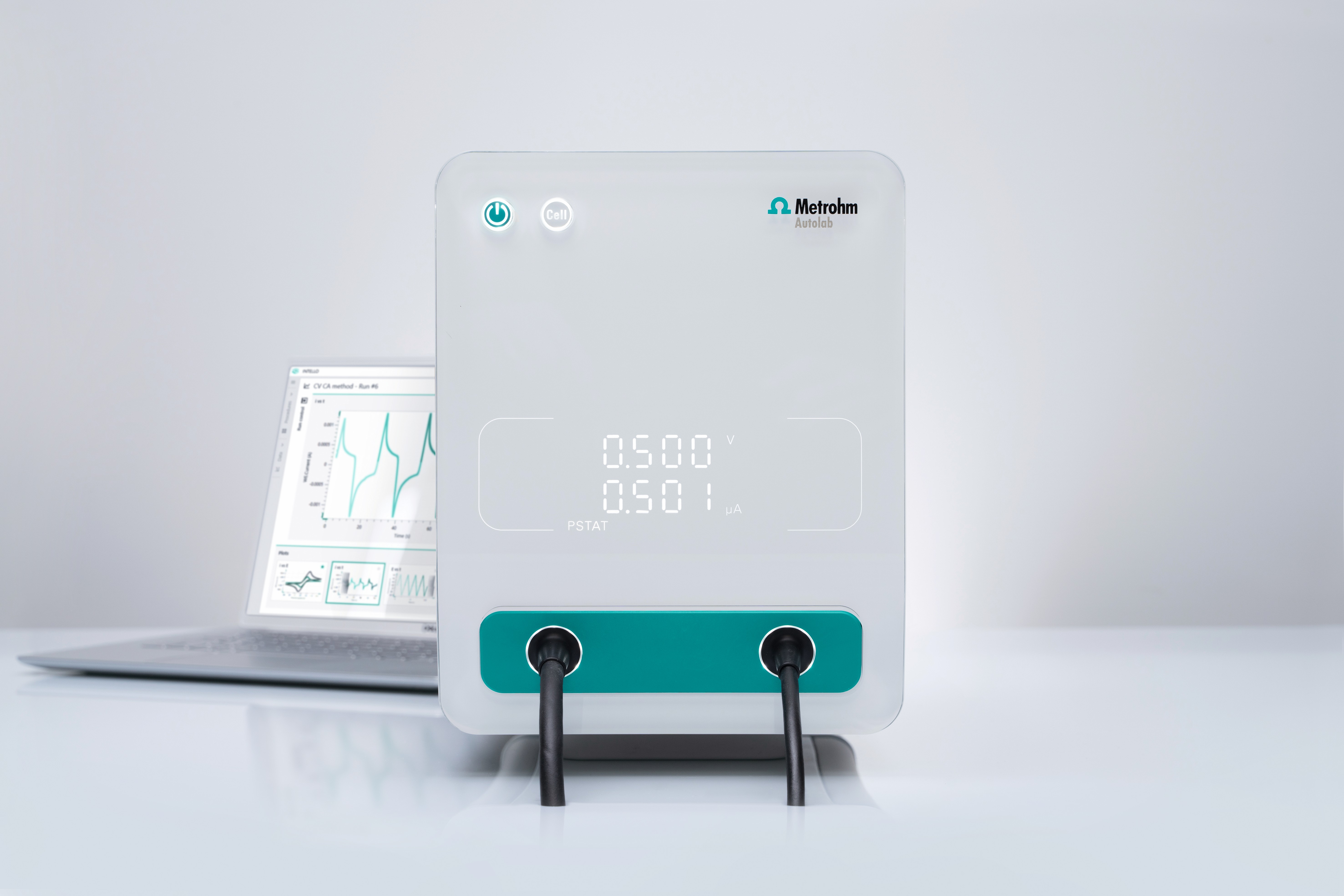

VIONIC powered by INTELLO is the newest-generation potentiostat/galvanostat by Metrohm Autolab. It integrates the highest specifications and most advanced features into a single, compact instrument, without the need of additional modules.

VIONIC is a high-performance single-channel potentiostat/galvanostat designed to support a wide range of electrochemical research applications, offering both low to high voltage and adaptive current ranges to measure currents from a few fA to ± 6 A.
High-quality EIS (> 99.75 % is included) is included with a maximum frequency of 10MHz, and measurable impedance from 100 μΩ to 1 TΩ.



  • Dual-mode compliance voltage: selectable ± 10 V / ± 50 V

  • Dynamic current ranging from ± 1 nA to ± 6 A

  • EIS maximum frequency: 10 MHz

  • 10 million points internal memory for computer-free operation (untethering)

  • Fast sampling (down to 1 μs) and seamless transition (0 ns) between commands

  • Linear and staircase scan for LSV and CV included


Features


Features



High-performace specifications

The VIONIC powered by INTELLO is a comprehensive solution for all fields of electrochemistry. It comes equipped with a wide array of techniques, from fundamental methods like cyclic and linear sweep voltammetry, chronopotentiometry, and chronoamperometry, to more advanced ones such as high-frequency electrochemical impendence spectroscopy, measurements with high sampling rates (down to 1 μs), and voltammetry with a true linear ramp.

The combination of specifications (wide current range availability, selectable floating or grounded modes, wide range of available frequencies for EIS, high accuracy or high compliance mode), ensure VIONIC can meet the evolving needs of any research project without the need for additional modules.

High accuracy and precision are at the core of the design of VIONIC and its proprietary Pure Signal Bridge ensures a clean, noise-free connection between the cell and the instrument

Specifications
Compliance voltage ± 10 V or ± 50 V, selectable
Maximum applied/measured potential ± 10 V
Maximum applied/measured current ± 6 A (up to ± 10 V)
± 3 A (up to ± 50 V), selectable
Current ranges 6 A to 1 nA , in 11 decades
EIS / Maximum frequency 10 MHz
Second Sense (S2) Included with EIS on S2
Analog scan Included
On-board data buffer Maximum 10 million data points
Floating/Grounded mode Selectable, with 4 modes

Detailed specifications can be found in this specification sheet

Second sense

The second sense electrode is an additional voltage follower which can measure a second voltage versus the reference electrode, for example the potential on the counter electrode, within the electrochemical cell. It is also possible to measure the impedance on the counter electrode with the S2 electrode. VIONIC includes "Second Sense (S2)" as a standard feature, which allows for dual monitoring of both the full-cell impedance and half-cell impedance simultaneously during an Electrochemical Impedance Spectroscopy (EIS) measurement.



The most complete data

VIONIC’s fast sampling (1 μs sampling interval) and seamless measurements (0 ns gap between commands) for both applied and measured signals ensure no data points are missed.



Analog Scan

Unlike many other potentiostats that use staircase or digital approximation for potential sweeps, VIONIC includes a true analog scan as standard. This is critical for capturing high-resolution data on fast, interfacial processes, providing more accurate and reliable results for techniques like cyclic voltammetry at high scan rates.



Selectable floating

VIONIC offers four different floating modes, 1. Grounded working electrode (WE), 2. Grounded counter electrode (CE), Grounded reference electrode (RE) and full floating (standard). With the Selectable Floating feature, VIONIC can be used for corrosion measurements on any type of electrochemical cells, independent of the grounding state of the sample, electrodes or cell.



Computer-free operation

VIONIC has 10 million data points of onboard memory, which means it can run most measurements for up to weeks without being connected to a computer. With its possibility of network installation, VIONIC can be monitored, and the data retrieved from a computer on the same network. This also allows for additional data safety during network interruptions or accidental computer powering off: VIONIC keeps running measurements, and the data is safe until a connection is established again.



INTELLO software

Explore INTELLO software for VIONIC: intuitive platform to build procedures, collect and view data in real time. INTELLO was built to accommodate both exploratory workflows with the possibility to access advanced settings and design complex procedures, but also more routine experiments, with main parameters accessible at all time and not need to dive deep into the design of the procedure. INTELLO provides you with tens of procedures carefully crafted to get started in not time, regardless of the application. Data analysis tools such as the EIS fit and Sim tool and corrosion rate analysis commands that give rapidly another dimension to the collected data.



External device hyphenation

Gain new insights with hyphenation: EC-Raman, XRD, FTIR, DEMS and more. Connect your Autolab instrument and synchronize the electrochemical signal with any external device which best fits your application requirements



Full range of accessories

Explore our full range of accessories that make VIONIC a complete work system for all fields of application (cells, electrodes, rotators, specialized cables)

>

+
