Electrochemical measurements in Energy research

Energy research focuses on developing and improving technologies for energy conversion, storage, and harvesting, including batteries, fuel cells, supercapacitors, and solar cells. Electrochemical techniques are essential for understanding the mechanisms, efficiency, and durability of these energy systems. Techniques such as cyclic voltammetry, electrochemical impedance spectroscopy (EIS), and galvanostatic charge-discharge tests provide critical insights into material performance and device behavior.

Resources about electrochemical energy research and testing

Application notes

Click to view all application notes related to energy research

User manuals

Click to view all user manuals related to energy research

Webinar

Click to view all webinar related to energy research

Youtube videos
Click to view all how-to video related to energy research

Key factors to consider when selecting a potentiostat for energy research and testing:

Wide current range (nA to A): For measuring from small electrodes to large battery cells
High voltage compliance: Supports testing of high-voltage batteries and fuel cells
Multi-channel capability: Enables simultaneous testing of multiple devices
Advanced EIS over wide frequency range
High data acquisition speed/ true analog scan: Captures fast transient processes in supercapacitors and solar cells
Control integration: Allows precise environment simulation during testing
Computer-free operation: Operate the potentiostat independently without connecting a laptop, freeing your computer for other tasks in the lab/ at home

What are your challenges in Energy research or testing?

VIONIC potentiostat/galvanostat is suitable for high-density testing with a maximum current of 6 A. For higher currents up to ± 10A, the Autolab Multichannel M204 with the Booster10A or the Modular AUT302N with the Booster20A can be used. For higher currents than ± 20A, third part programmable power supplies and electronic loads can be controlled via NOVA software. Contact your local Metrohm Autolab support office for additional details.

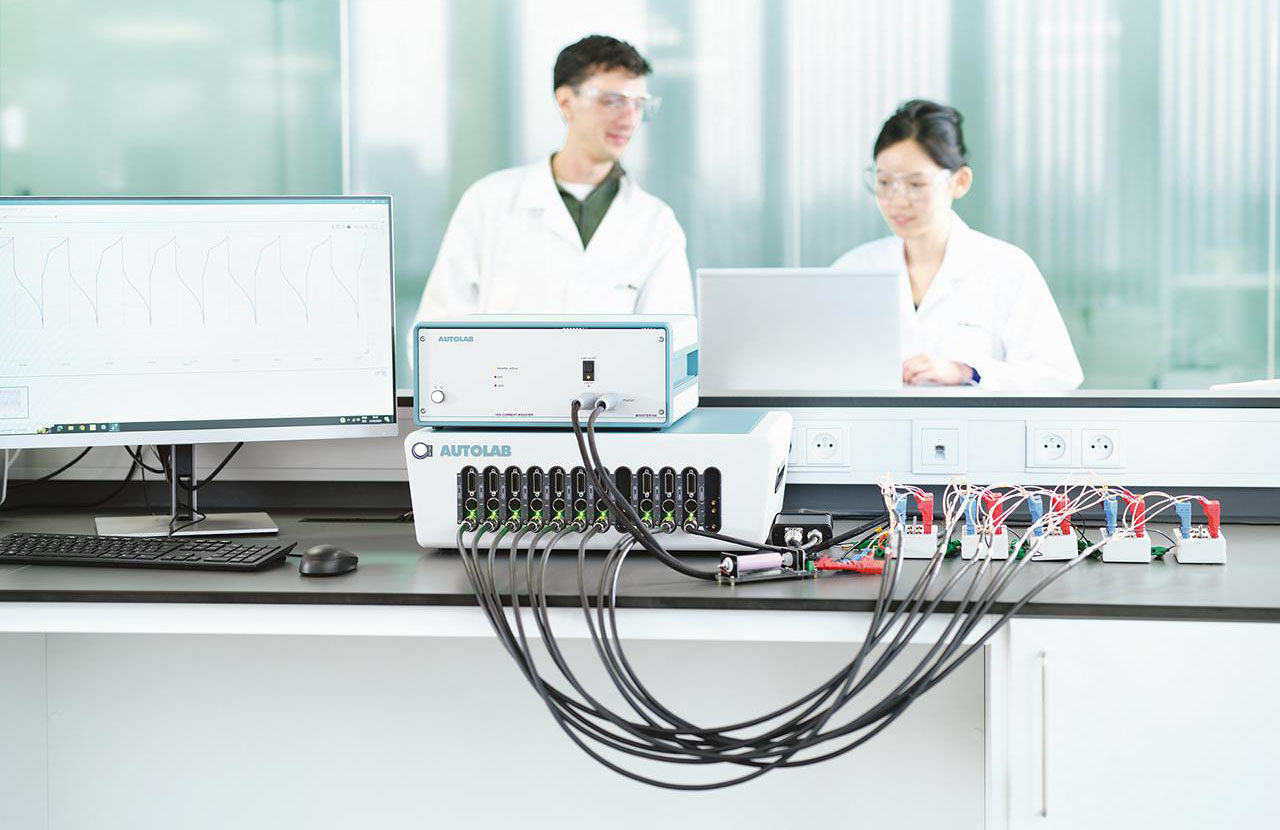

Configurable setup for energy research

Metrohm Autolab electrochemical instruments, advanced software packages including tailor-made measurement commands, analysis tools and complete measurement protocols, combined with the right accessories provide a complete and flexible solution for advanced research in energy storage applications. With safety and efficiency being the highest priority, the complete solutions allow investigations and discoveries of new materials as well as performance testing of batteries and supercapacitors with the highest accuracy and precision.

Metrohm Autolab potentiostats/galvanostats

VIONIC powered by INTELLO

Single channel, all-in-one potentiostat/galvanostat
Maximum current: ± 6 A
EIS frequency: 10 MHz
Simultaneous EIS on 2 electrodes
Maximum AC amplitude: ± 6 A / ± 10 V (p-p)
True analog scan for supercapacitors
Computer-free operation with internal memory

Details

Autolab Multichannel M204

Multichannel potentiostat/galvanostats for maximum throughput with versatility
Maximum current: ± 400 mA (or ± 10 A with Booster)
EIS: optional, up to 1 MHz
Up to 12 potentiostat/galvanostat channels (or 6 channels with EIS) per cabinet
Analog and Digital I/O for external control

Details

Discover all Metrohm Autolab potentiostats galvanostats

Metrohm Autolab potentiostats/galvanostats

Electrochemical Techniques and software features for energy research and testing:

Customizable safety limits, rules and cell isolation with emergency switch for high power solutions

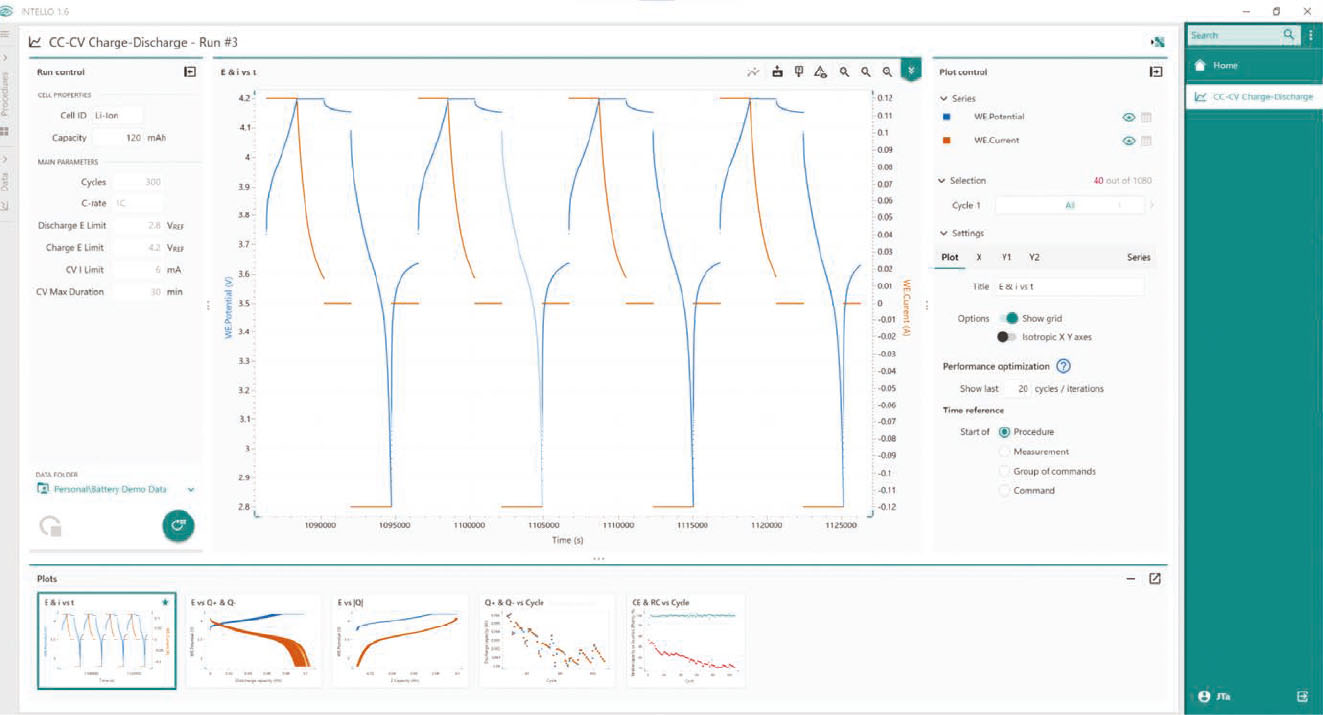

Constant-current / constant-voltage (CC, CC-CV) cycling as well as GITT / PITT, internal resistance measurement techniques
Automated data analysis and plotting: Capacity (charge, discharge, total), Coulombic efficiency, Capacity retention, dQ/dV plots
Real-time monitoring of State-of-Health (SoH) and State-of-Charge (SoC) throughout battery cycling
EIS at both anode and cathode (with a second sense S2) with an accuracy up to 99.75%
Built-in EIS data fitting with circuit library
User-defined end conditions
Dynamic sampling for data reduction
Data can be continuously and automatically exported with onboard memory supporting up to 10 million data points

Discover the INTELLO and NOVA software features

Energy research specific accessories

Current Boosters		Autolab Booster10A Increase the applied and measured current op to 10 A Compatible with the Autolab Multichannel M204, PGSTAT302N and compact AUT204 Compatible with FRA32M for EIS measurements on batteries and fuel cells Four-quadrant operation and fast response time

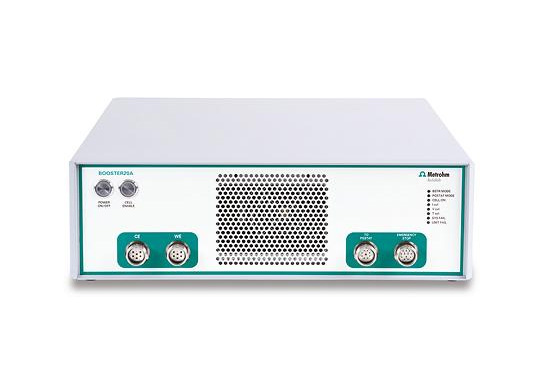

Current Boosters		Autolab Booster20A Increase the applied and measured current up to ± 20 A Compatible with the Autolab modular AUT302N Compatible with FRA32M for EIS measurements on batteries and fuel cells Four-quadrant operation and fast response time

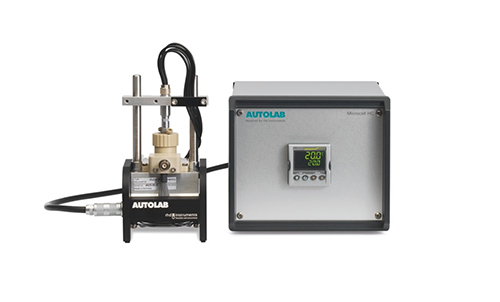

Temperature controlled cell setup		Metrohm Autolab Microcell HC Precision temperature control for electrochemical experiments, delivering reliable and reproducible data for temperature-sensitive applications. Specially designed cell stand with a range of air-tight electrochemical cells for different applications Manual or software-controlled heating and cooling of the measuring cells by using a Peltier element with hassle-free cell connections to the potentiostat, streamlining your workflow and maximizing efficiency

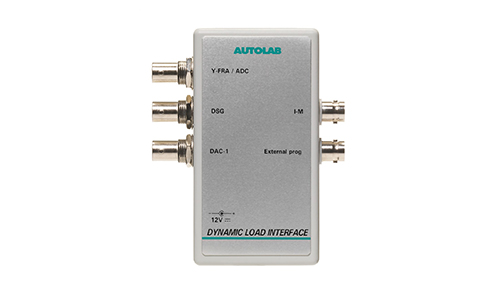

Dynamic load interface		Metrohm Autolab Dynamic load interface Enable high power applications by connecting and controlling third-party programable electronic loads and power supplies Full control through NOVA software, allowing convenient adjustment of applied current, voltage, and other experimental parameters Perform either DC or AC (EIS) measurements at high currents creating limitless possibilities in the field of energy storage and energy generation research

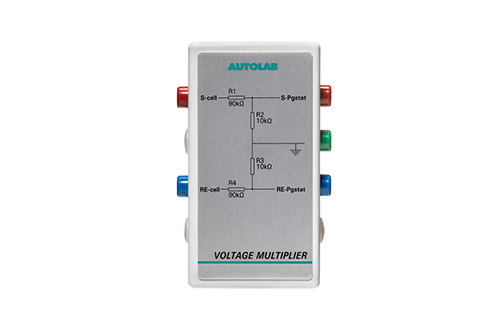

Voltage multiplier		Metrohm Autolab Voltage Multiplier Expand the voltage range up to the compliance limit of the potentiostat by connecting the Voltage Multiplier to your Metrohm Autolab potentiostat display the real measured values by using the “calculate signal” functionality in NOVA software Perform either DC or AC (EIS) measurements at high voltages creating limitless possibilities in the field of energy storage and energy generation research; combination with the dynamic load interface is possible.

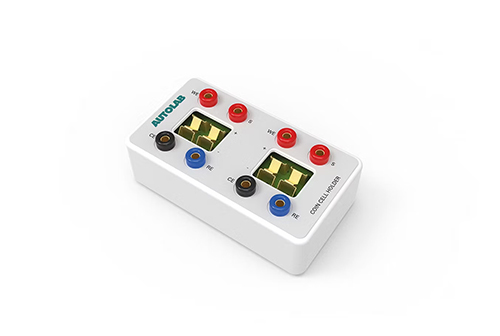

Battery holders		Autolab Duo coin cell holder With 4-point Kelvin contacts to assure the highest precision measurements Gold-plated contacts resistant to corrosion from accidental spilling of chemicals Versatile design, capable of accommodating one or two coin cells of various standard sizes and capacities Integrated, color-coded, and clearly labeled 4 mm banana connectors for the convenient and precise connection of your Autolab potentiostat to the holder.
